LEONGY

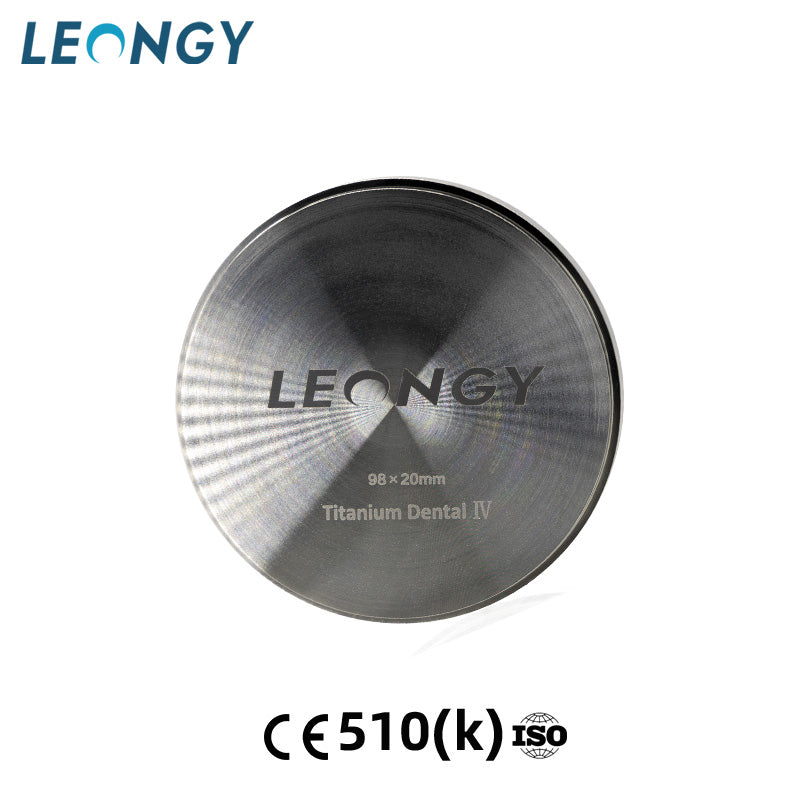

Titanium CAD/CAM Disc

Titanium CAD/CAM Disc

Grade
Thickness
$36.00 USD
$36.00 USD
Oferta Agotado

LEONGY titanium discs are the perfect material for CAD/CAM guided milling processes made from Grade 5 Titanium, it is used in CAD/CAM milling machines to produce appliances that must be rigid and tough, single crowns, larger bridges and suprastructers over implants.It is strong enough and biocompatible necessary for perfect tooth structure, while still being gentle on your milling tools. Available in a variety of size.

COMPOSITION:  Ti(89.8%) , Al(6%) , V(4%) , Fe(<1%)

PROPERTIES

 VALUE  VALUE
Type 4 5
Vickers hardness                                      Hv  10 196 353
Coefficient of thermal expansion             25-500℃ 7.6×10⁻⁶ /K 9.8×10⁻⁶ /K
Density 4.5g/cm³ 4.43g/cm³
0.2% Elongation limit                               Rp 0.2 481MPa(N/mm²) 828MPa(N/mm²)
Tensile strength                                        Rm 628MPa(N/mm²) 895MPa(N/mm²)
Ductile yield                                              A5 15% 10%
